How to Fix Blender-to-Godot Import Problems

Import problems become manageable when you test the workflow in order: source data, export settings, generated GLB, Godot reimport, then runtime behavior. Skipping directly to runtime code often hides the real failure.

Fastest diagnostic: export one tiny scene with one cube and one known custom property. If that works, add the failing feature back one piece at a time.

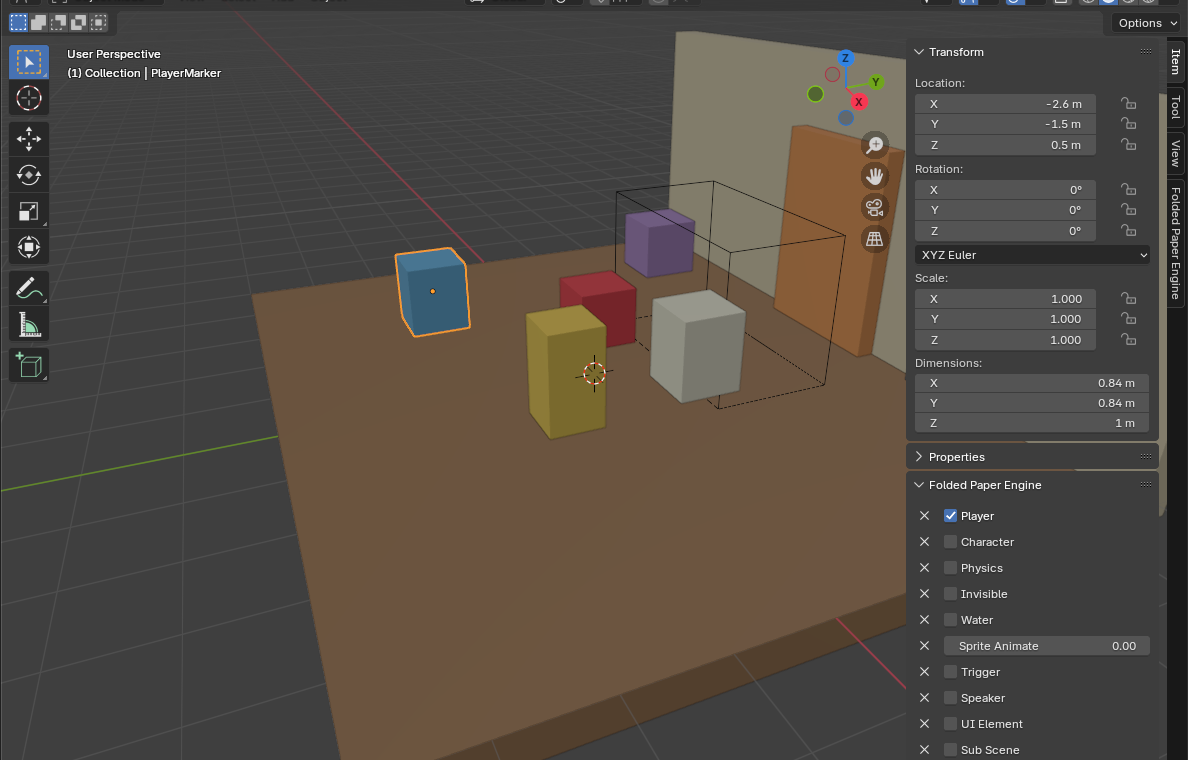

Selected Blender player marker with its FPE Item properties visible — Start at the source: select the exact object and confirm its name, role checkbox, transform, and FPE settings before exporting again.

1. Verify the Blender source

Confirm the property or FPE feature is set on the intended scene, object, or animation.
Apply transforms when the runtime expects mesh dimensions or orientation.
Use explicit IDs and project-relative paths; check spelling and case.
Ensure linked assets and audio files will exist inside the Godot project.

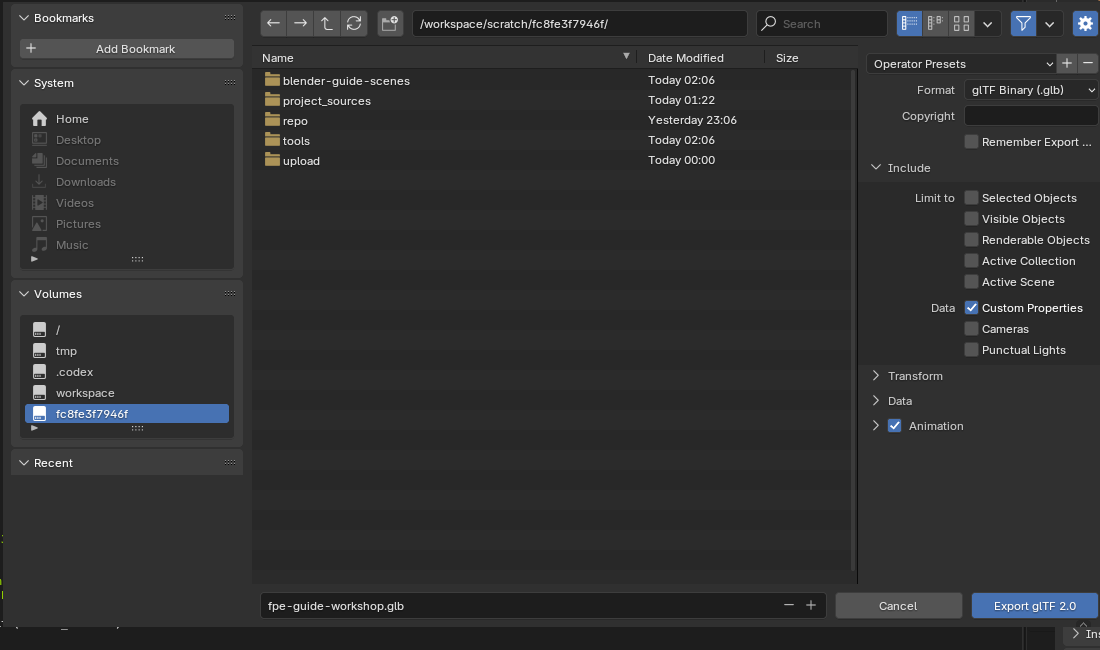

Blender glTF export dialog with the required Custom Properties checkbox enabled — If FPE settings disappear after export, verify this exact control first: Include → Custom Properties must be enabled.

2. Verify the glTF export

Enable Custom Properties whenever gameplay metadata must travel with the scene. Export cameras, punctual lights, and animation only when the level uses them. Save the export preset so a later export does not silently omit a required option.

Godot editor showing the project FileSystem and Stage scene — In Godot, verify that the expected file appears under res:// and that the stable Stage scene still owns FoldedPaperEngine.

3. Verify Godot's import

Wait for Godot to finish reimporting after replacing the GLB.
Inspect the imported scene before running the game: transforms, names, materials, animation, and metadata should already be plausible.
If the preview is stale, select the asset and reimport it deliberately.
Read the editor output for missing resource paths, parse errors, and extension warnings.

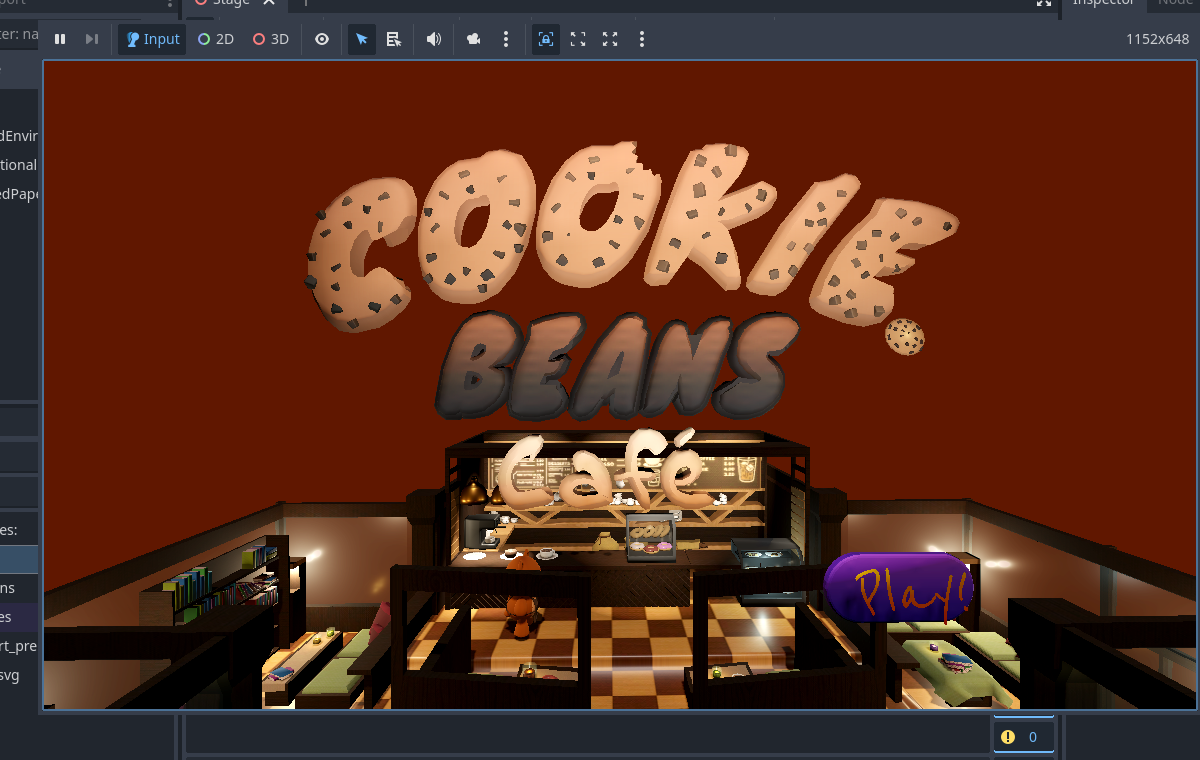

FPE demo running inside the Godot editor — Run the smallest failing scene and separate visual, collision, metadata, and event symptoms before changing several systems at once.

4. Isolate the runtime symptom

Geometry but no behavior: custom properties were probably omitted or the runtime importer is inactive.
Wrong trigger size or placement: inspect applied transforms and collider generation.
Silent audio: verify the Godot resource path, autoplay/event, bus, and listener distance.
Trigger never fires: inspect collision layers, masks, body type, participant filters, and one-shot state.
Level fails to load: verify the project-relative GLB path and use the engine's normal level-loading path so cleanup runs.

Do not repair generated scenes by hand

Manual edits inside an imported scene are likely to disappear on reimport. Fix the Blender source, export contract, import extension, or a stable Godot child/override. The goal is a repeatable workflow, not a one-time successful file.

Godot reference: Godot glTF scene documentation
